Understanding Pixels Per Inch (PPI) & Sub-Pixel Geometry
Pixels Per Inch (PPI) is the fundamental metric quantifying the spatial density of physical pixels arranged across an electronic visual display panel. While raw resolution (e.g., 3840×2160 or 2560×1440) defines the total addressable coordinate grid, pixel density dictates how tightly packed those pixels are across physical surface area. A 4K resolution rendered on a 65-inch television produces an ordinary 67.8 PPI, whereas that identical 4K resolution condensed onto a 27-inch desktop monitor delivers an ultra-dense 163.2 PPI.
High pixel density directly eliminates the perceptible "screen-door effect" (the visible sub-pixel grid lines separating active liquid crystal or organic emissive elements), smooths aliased raster curves in competitive gaming titles, and produces crisp typographic glyphs comparable to commercial offset printing.
Mathematical Formulas: Diagonal Pixels, Dot Pitch & Retina Distance
Pixel density calculations apply the Pythagorean theorem across the horizontal (W) and vertical (H) pixel dimensions relative to the diagonal physical dimension (D) in inches:
PPI = √(W² + H²) / DFrom the computed PPI, two critical optical metrics are derived:
- Dot Pitch (Sub-Pixel Pitch in mm): Represents the physical distance between adjacent sub-pixel centers:

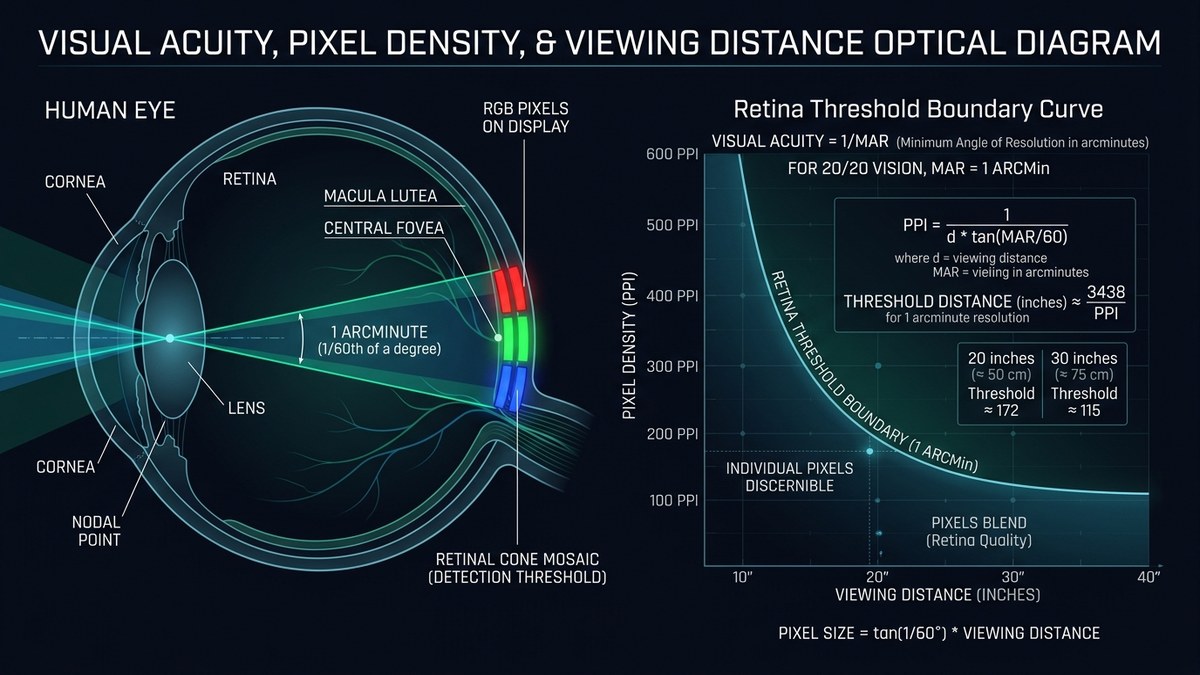

Dot Pitch = 25.4 / PPI (mm) - Retina Visual Acuity Distance: Defined by the angular resolving power of the human eye (standardized at 1 arcminute or 1/60th of a degree for 20/20 Snellen vision):
Retina Distance = 3438 / PPI (inches) = 8732 / PPI (cm)
Comparison Matrix: Standard Display Sizes, PPI & Ideal Viewing Distances
The table below provides empirical technical specifications for common desktop, laptop, and ultrawide display form factors:
| Display Format | Resolution (W×H) | Diagonal Size | Pixel Density (PPI) | Dot Pitch (mm) | Retina Distance | Recommended OS Scaling |
|---|---|---|---|---|---|---|
| 24" Full HD (1080p) | 1920 × 1080 | 23.8 inches | 92.56 PPI | 0.2744 mm | 37.1" (94 cm) | 100% Native |
| 27" QHD (1440p) | 2560 × 1440 | 27.0 inches | 108.79 PPI | 0.2335 mm | 31.6" (80 cm) | 100% Native (Sweet Spot) |
| 32" QHD (1440p) | 2560 × 1440 | 31.5 inches | 93.24 PPI | 0.2724 mm | 36.9" (94 cm) | 100% Native |
| 27" 4K UHD | 3840 × 2160 | 27.0 inches | 163.18 PPI | 0.1557 mm | 21.1" (54 cm) | 150% Fractional / 2x HiDPI |
| 32" 4K UHD | 3840 × 2160 | 31.5 inches | 139.87 PPI | 0.1816 mm | 24.6" (62 cm) | 125% – 150% Scaling |
| 34" Curved Ultrawide (UWQHD) | 3440 × 1440 | 34.1 inches | 109.68 PPI | 0.2316 mm | 31.3" (80 cm) | 100% Native |
| 49" Super Ultrawide (DQHD) | 5120 × 1440 | 48.8 inches | 108.54 PPI | 0.2340 mm | 31.7" (80 cm) | 100% Native |
| 16" MacBook Pro Retina | 3456 × 2234 | 16.2 inches | 254.00 PPI | 0.1000 mm | 13.5" (34 cm) | 200% (2x Integer HiDPI) |
Sub-Pixel Arrangements: RGB Stripe vs. BGR vs. QD-OLED Diamond PenTile
A display's effective typographic clarity is governed not only by gross PPI but also by the microscopic geometry of its sub-pixel elements. Standard Windows sub-pixel anti-aliasing engines (such as Microsoft ClearType) assume an RGB vertical stripe structure (Red, Green, Blue from left to right).
- RGB Vertical Stripe: Standard layout for IPS and Fast-IPS gaming panels. Text is rendered razor-sharp with standard OS font smoothing.
- BGR Sub-Pixel Layout: Used in select high-refresh VA and IPS panels (e.g. Gigabyte M27Q). Reverses the color filter sequence, causing magenta/cyan color fringing on black text unless ClearType is explicitly re-calibrated.
- QD-OLED Triangular / Diamond PenTile: First-generation QD-OLED panels arrange sub-pixels in a non-standard triangular cluster. At 110 PPI (such as 34-inch ultrawides), minor color fringing occurs on horizontal high-contrast window borders. At 140+ PPI (such as 32-inch 4K QD-OLED), the sub-pixel pitch shrinks sufficiently to make fringing imperceptible at normal desk distances.
OS Scaling & HiDPI Fractional Rendering in Windows 11 & macOS
Operating systems handle high-density displays differently. Understanding the distinction between integer scaling and fractional scaling is critical for latency-sensitive applications:
Windows 11 Fractional Scaling: When Windows scales a 27-inch 4K display to 150%, it calculates coordinates via direct vector scaling. While modern DirectWrite apps render crisply, legacy Win32 applications may suffer blurriness or minor compositor lag. For competitive FPS players, 27-inch 1440p (108.79 PPI) remains standard because 100% native scaling guarantees 0ms Desktop Window Manager (DWM) scaling overhead.
macOS Quartz HiDPI: Apple's macOS rendering engine is optimized for 218 PPI (5K Studio Display) or 110 PPI (standard resolution). When running a 4K monitor scaled to look like 1440p, macOS renders internally at 5120×2880 (5K) and downscales the final frame buffer to 3840×2160. This creates flawless visual symmetry but consumes minor GPU compute cycles compared to native integer scaling.
